Fosi Audio TP-02 Subwoofer Amplifier

• Adopt Texas Instruments TDA7498E chip, NE5532 op-amp. No pop, no audible noise, dead silent when nothing is playing through it;

• Built-in low pass filter, 220W X 1(4 ohms, 20 Hz - 120Hz, 0.04% THD, 18db/octacce) for subwoofer, Small simple compact design but practical and powerful;

• Advanced circuitry design, built-in speakers protection circuit, solid aluminum chassis for long time use;


• The new version of TP02 has one more sub freq adjustment knob than the old version, and the others remain unchanged.

Quick tips:

1. Please plug the power cord into the amp THEN the wall, plug the audio cables into amp THEN switch on.

Some customers may see some slight sparks flying when they plug the power supply into the amplifier, because they use it in wrong way, you need to connect the amp to the power supply first, then plug the power supply into the 110v AC outlet, don't worry about the sparks, because this is class d amplifier, the capacitors need to charge when the power in, it's normal and safe.

Specifications

Specifications	Details
Model	TP-02
Output Power	220W for Subwoofer
Terminating Impedance	2Ω-8Ω

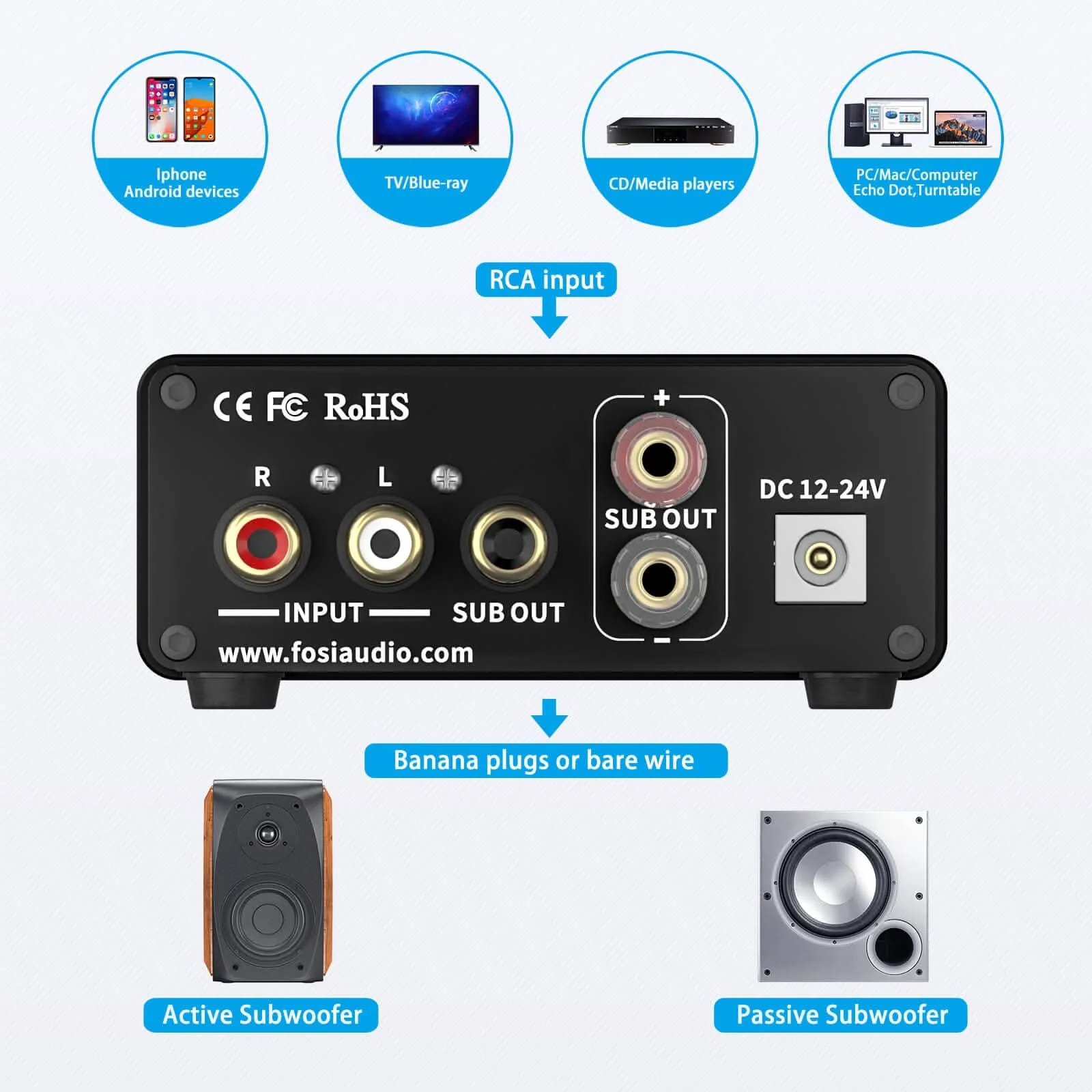

Input Mode	RCA
Output Mode	Passive Subwoofer /  Powered Subwoofer
Frequency Range	20-200Hz
THD	≤ 0.04%
SNR	≥ 98dB
Input Sensitivity	≤ 280mV
Device Dimension	5.12 x 3.54 x 1.58 inches
DC Input Range	12-24V
Power Supply	24V 4.5A

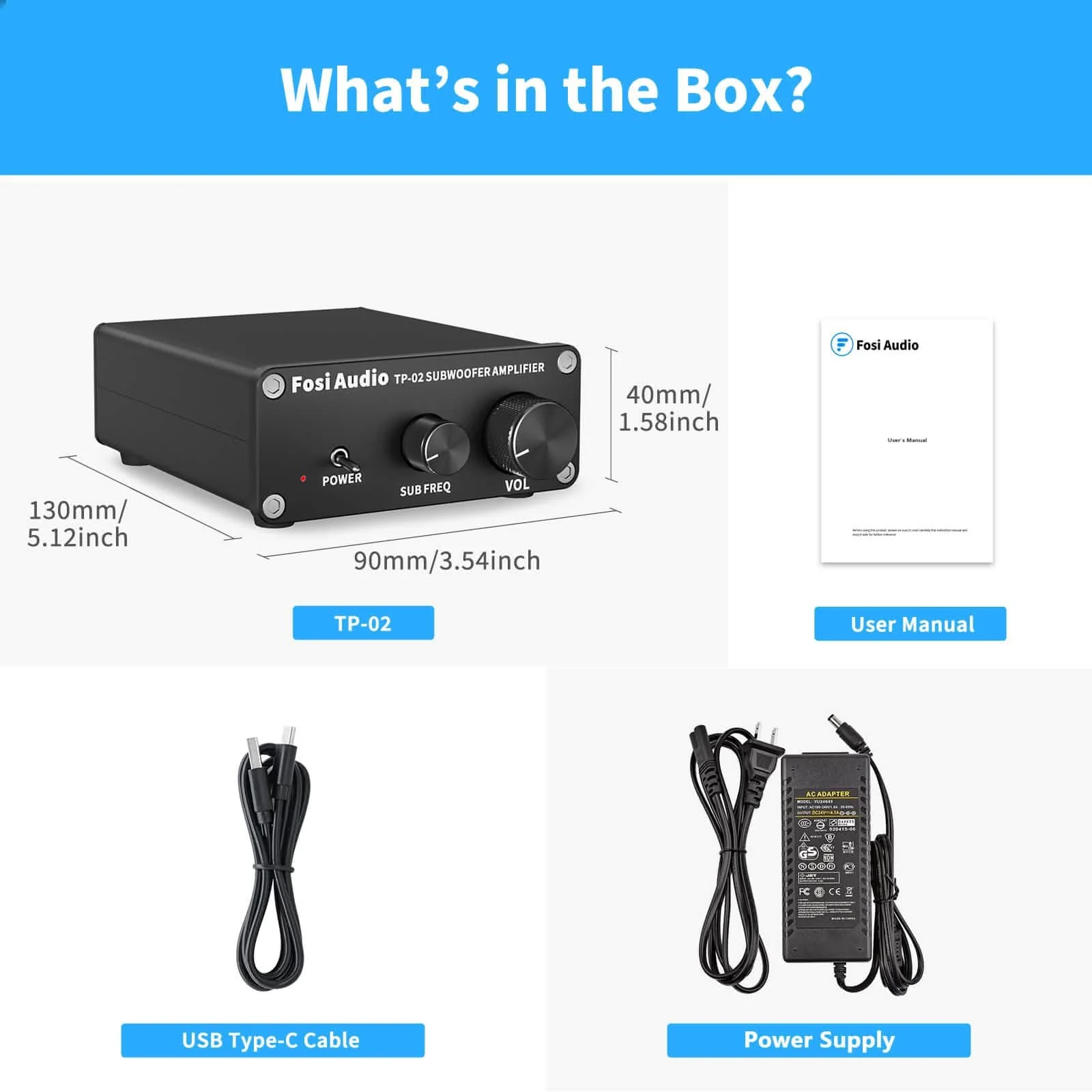

What‘s in the box？

Item	Quantity
Fosi Audio TP-02 Amplifier	x 1
AC Power Cord	x 1
24V 4.5A Power Adapter	x 1
User’s Manual	x 1
