Fosi Audio M01-BT Bluetooth Subwoofer Mono Amp
- Upgraded Design: Add Bluetooth to a subwoofer amplifier. M01-BT support Bluetooth and RCA input can drive most home passive speakers, passive subwoofers, and powered subwoofers. (Note: M01-BT is not suitable for active speakers). Easy to build a simple sound system with M01-BT.
- Mini compact Class D Audio Amplifier. M01-BT SUB amp adopts ST Microelectronics TDA7498E high-performance chip, MAX power output up to 300Watts.

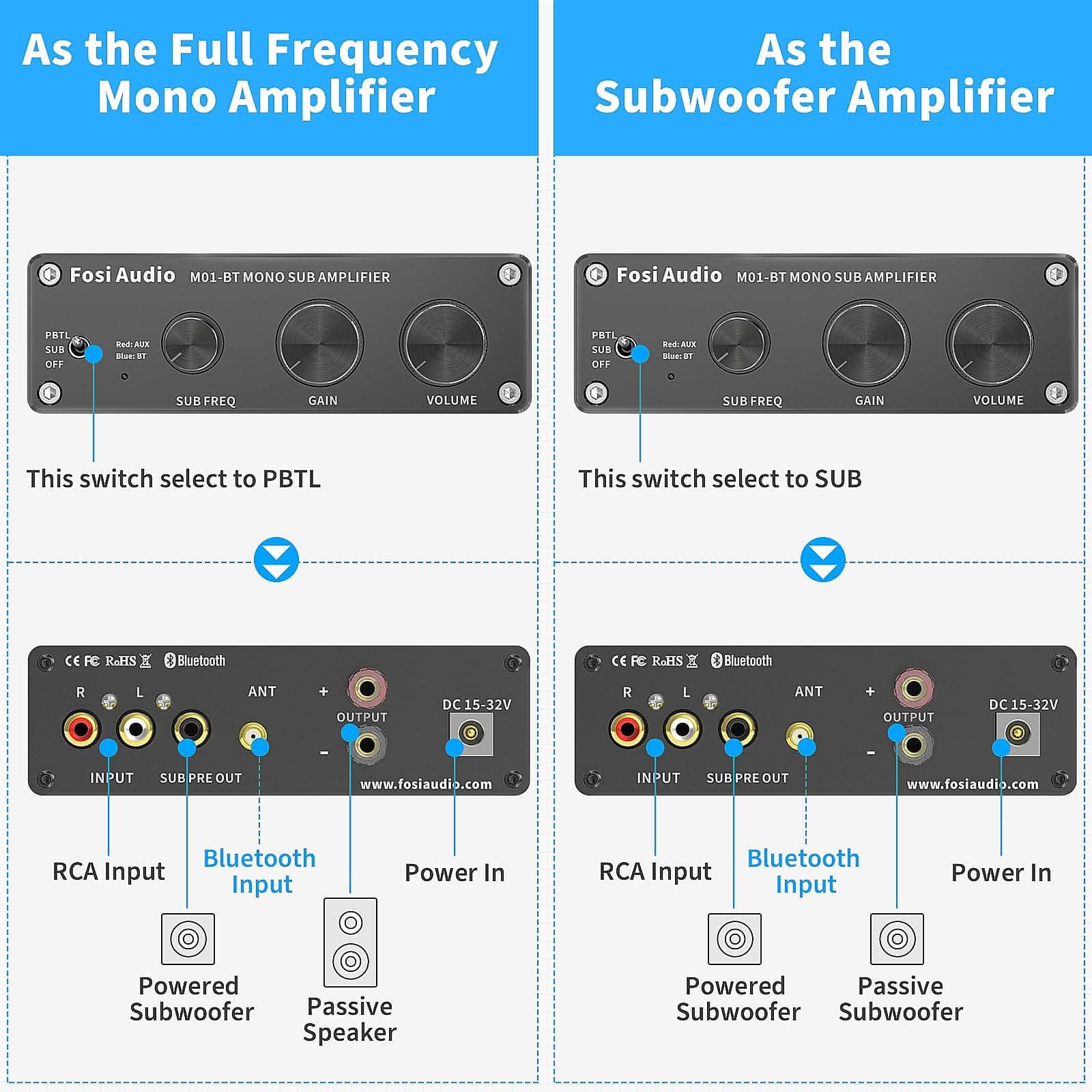

- Switch to PBTL(As a full frequency mono amp): You can use the banana plugs or bare wires to connect the passive subwoofer to the M01-BT, use the RCA cable to connect the powered subwoofer to the M01-BT.
- Switch to SUB(As a subwoofer amp): You can use the banana plugs or bare wires to connect the passive subwoofer to the M01-BT, use the RCA cable to connect the powered subwoofer to the M01-BT.
- What you Get: M01-BT amplifier x1, Bluetooth antenna x1, User Manual x1, 24V/4.5A Power Adapter x1, AC Cord x1, 18-month worry-free warranty, and friendly customer service.

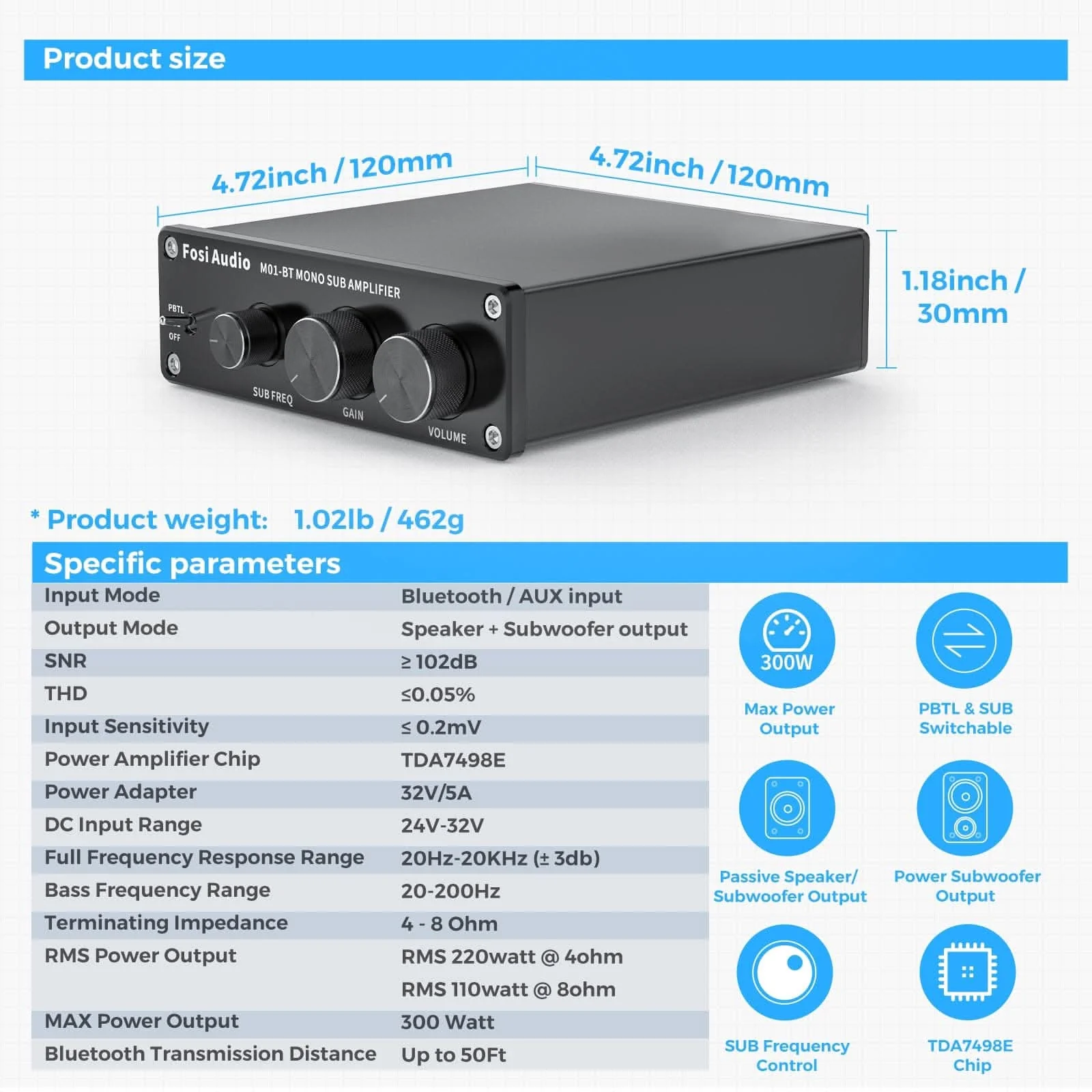

Specifications
| Specifications | Details |
|---|---|
| Model | M01-BT |
| MAX Power Output | 300W |
| RMS Power Output | RMS220W@4Ω, RMS 110W@8Ω |
| Terminating Impedance | 2-8Ω |
| Input Mode | Bluetooth + RCA |
| Output Mode | Passive Speaker + Powered Subwoofer |
| Frequency Range | 20Hz - 20kHz (±3 dB) |
| Bass Frequency Range | 20-200Hz |
| THD | ≤0.05% |
| SNR | ≥ 102dB |
| Input Sensitivity | ≤ 0.2mV |
| Chip Set | TDA7498E |
| DC Input Range | 24-32V |
| Power Supply | 24V 4.5A |

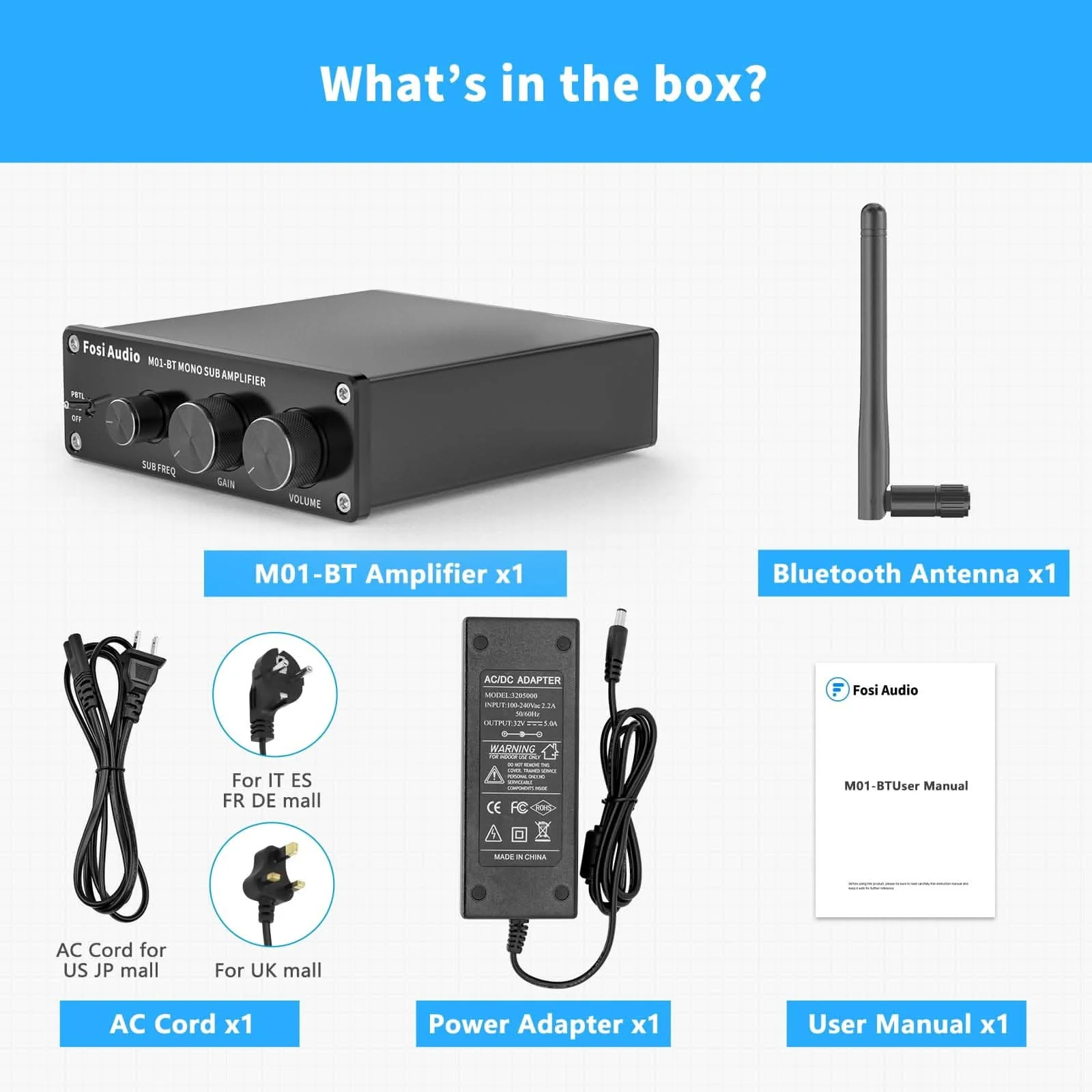

What‘s in the box?
| Item | Quantity |
|---|---|
| M01-BT Amplifier | x 1 |
| Bluetooth Antenna | x 1 |
| 32V 5A Power Adapter | x 1 |
| User’s Manual | x 1 |
M01 User Manual
Compare with similar items:
-
M02 Subwoofer Amp 100W
-
M03 Subwoofer Amplifier 200W
-
M04 Amplifier Subwoofer Amp 100W
