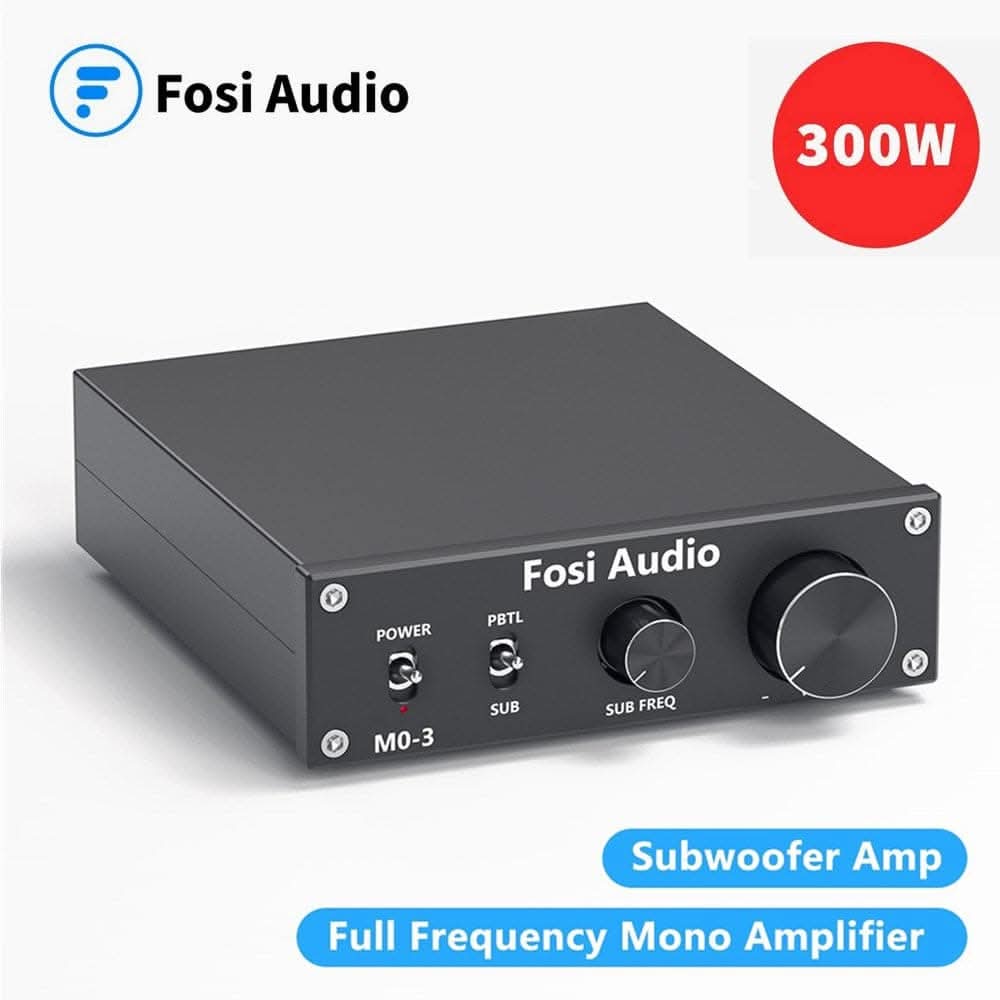

Fosi Audio M03 Subwoofer Mono Amplifier
-

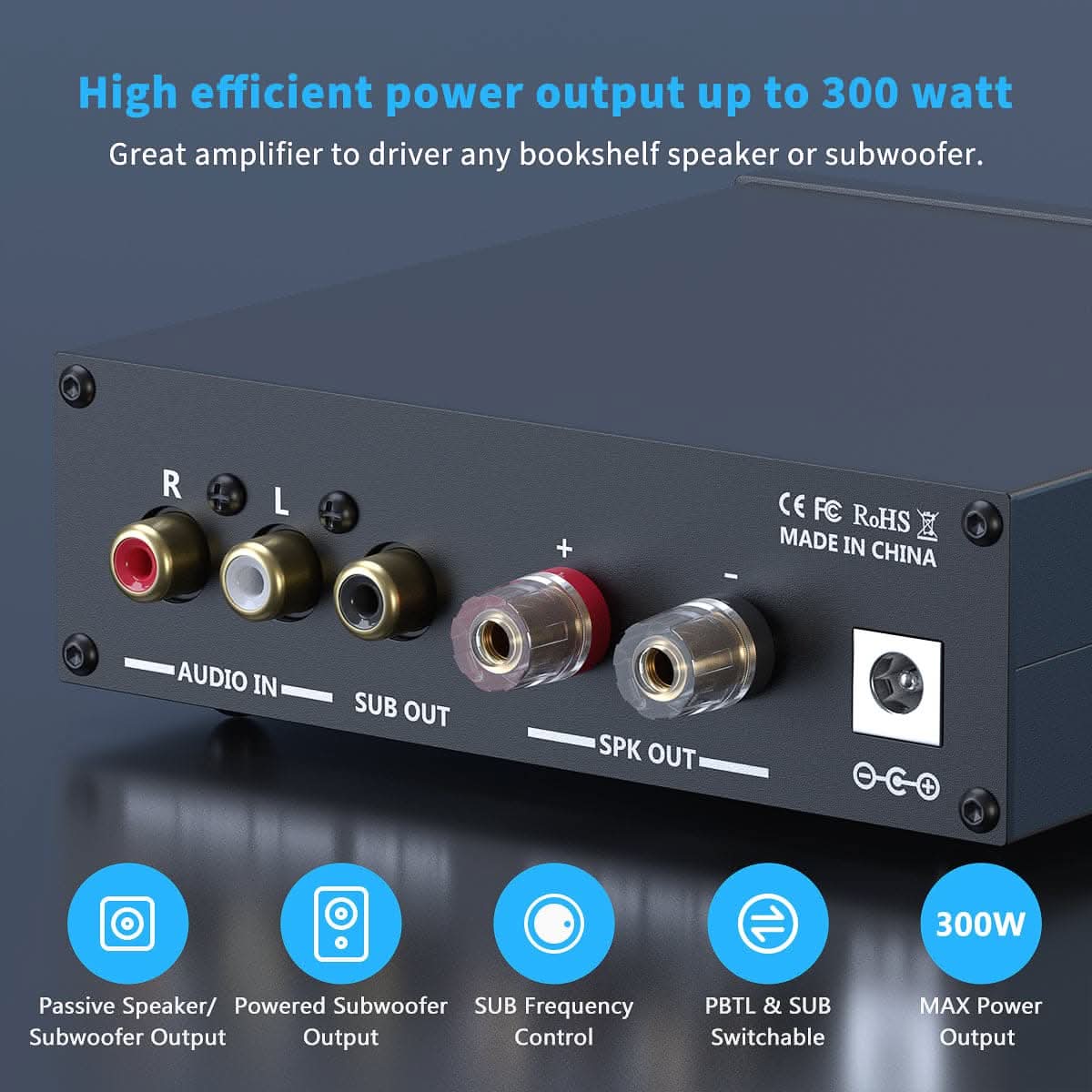

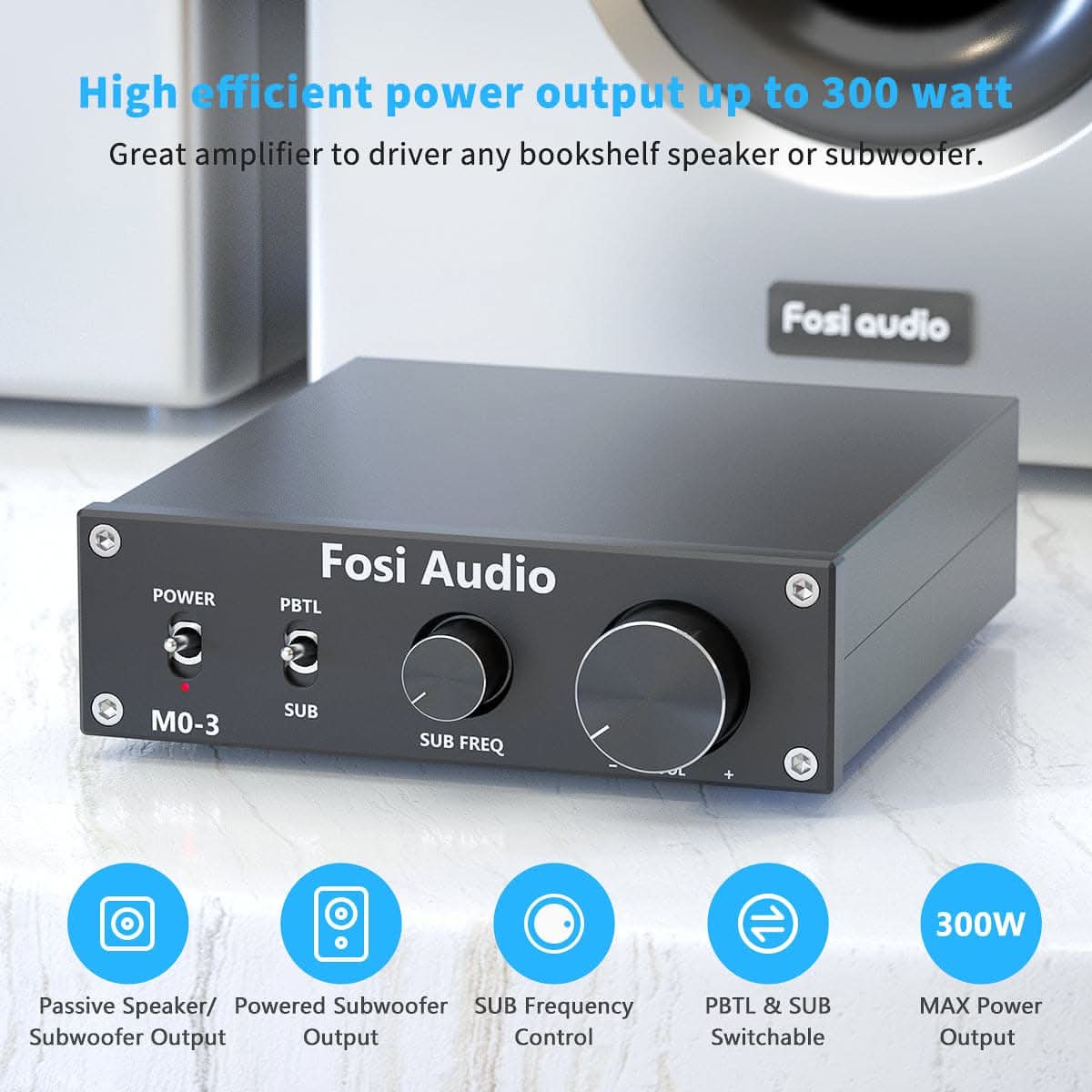

Hi-Fi Amp with Clean Sound Quality: Fosi Audio M03 subwoofer amp adopts the Instruments TPA3255D2 chip, High Efficient Power Output Up to 200Watt, providing 150 watts RMS into 4-ohm loads or 120watts to 8-ohm loads. Great amplifier to driver any bookshelf speaker or subwoofer;
-

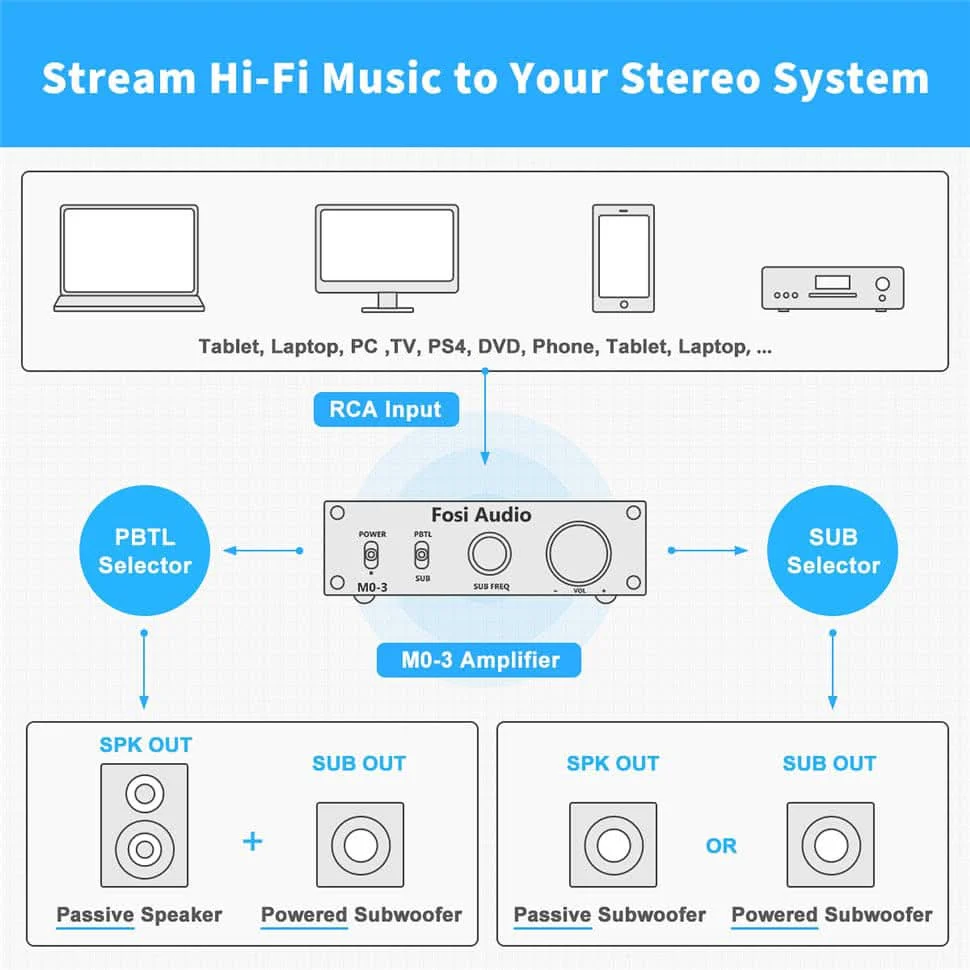

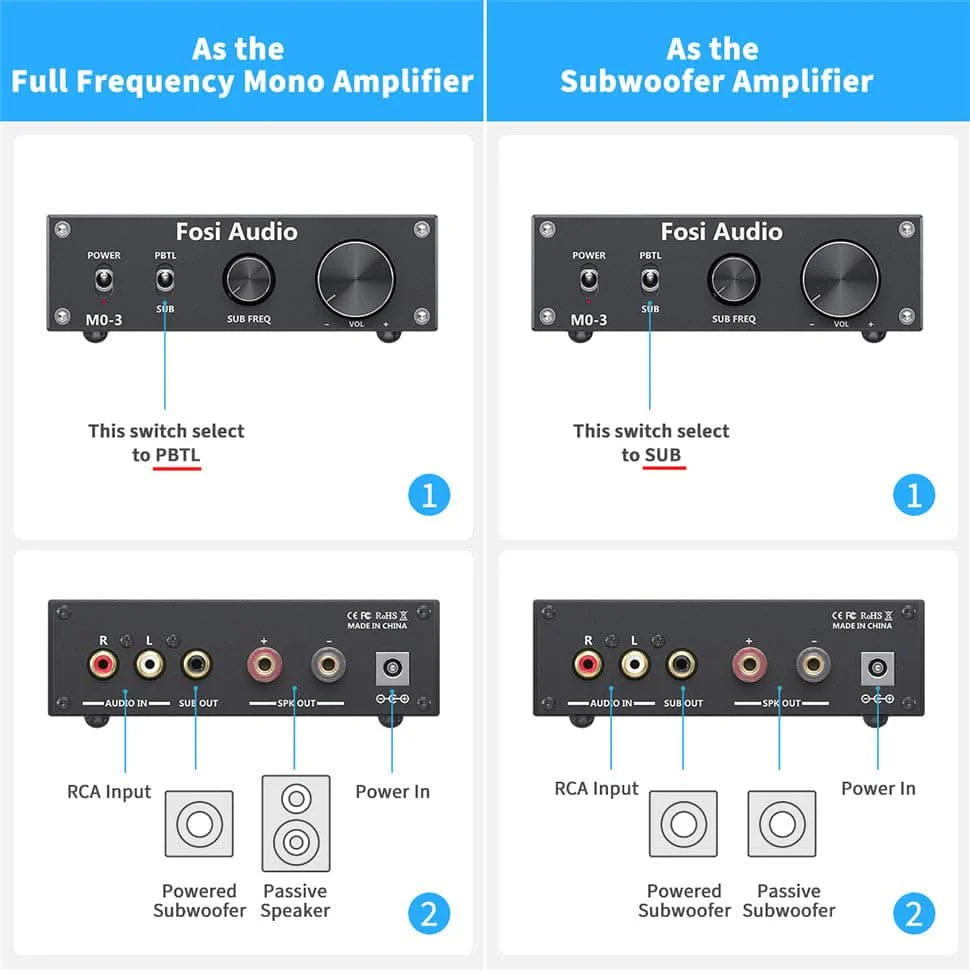

Subwoofer amplifier and Full-Frequency Mono Amp: Switch to PBTL, it's a Full-Frequency Mono amp for driving passive speakers and powered subwoofer. Switch to SUB, it's a subwoofer amplifier for diving passive and powered subwoofers;
-
Mini Compact but Powerful: Built-in low pass filter for 20-300Hz subwoofers with SUB frequency control, small simple compact design but practical and powerful;
-
Home Hi-Fi amplifier: Exclusively designed for the customers who pursue HiFi sound; MAX Power Output:200Watt. Note: The package comes with a 32V/5A power supply, you need a more powerful power supply to get the MAX power output;
Specifications
| Specifications | Details |
|---|---|
| Model | M03 |
| RMS Power Output: | RMS 200watt at 4ohm, RMS 100watt at 8ohm |
| Terminating Impedance | 4-8Ω |
| Input Sensitivity | ≤ 0.2mV |
| Full Frequency Response Range | 20Hz-20KHz(± 3db) |
| Bass Frequency Range | 20-200Hz |
| THD | ≤0.03% |
| SNR | ≥ 106dB |
| DC Input Range | 24-48V |
| Power Supply | 32V 5A |

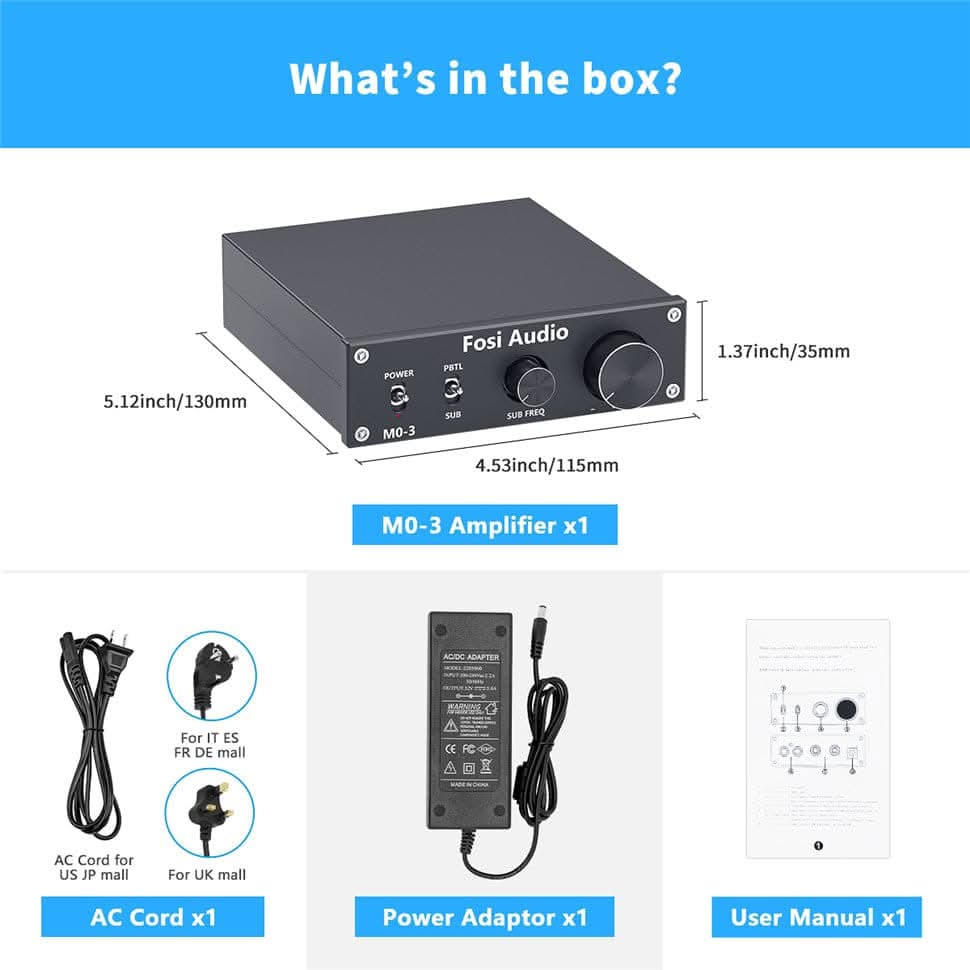

What‘s in the box？
| Item | Quantity |
|---|---|
| Fosi Audio M03 Amplifier | x 1 |
| 32V 5A Power Adaptor | x 1 |
| User’s Manual | x 1 |
M03 User Manual
