Fosi Audio TB10D Stereo Audio Amplifier
-
If you want to play your favorite songs entertainingly, a mini stereo amplifier is the best way to go. Fosi Audio TB10D is an analog input(RCA) Class-D audio amplifier that easy to install to build your home audio sound system.
-

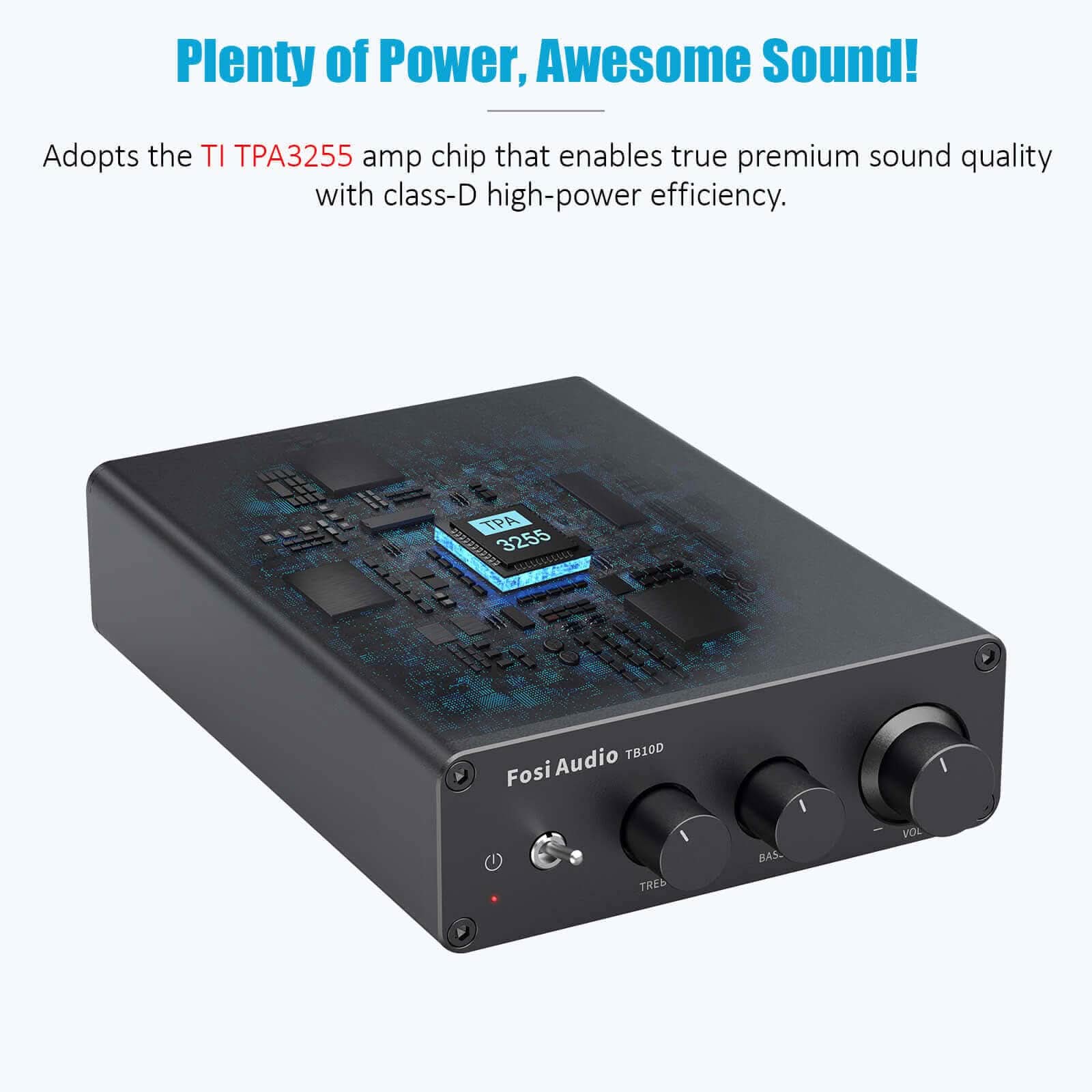

MAX Power Output up to 600Watts. TB10D adopts TI TPA3255 high-performance Class-D power amplifier chip enabling true premium sound quality. TPA3255 features an advanced integrated feedback design and proprietary high-speed gate driver error correction (PurePath Ultra-HD). This technology allows ultra low distortion across the audio band and superior audio quality. The device is operated in AD-mode, and can drive up to 2 x 300 W into 4-Ω load at 10% THD and 2 x 150 W unclipped into 8-Ω load.
-

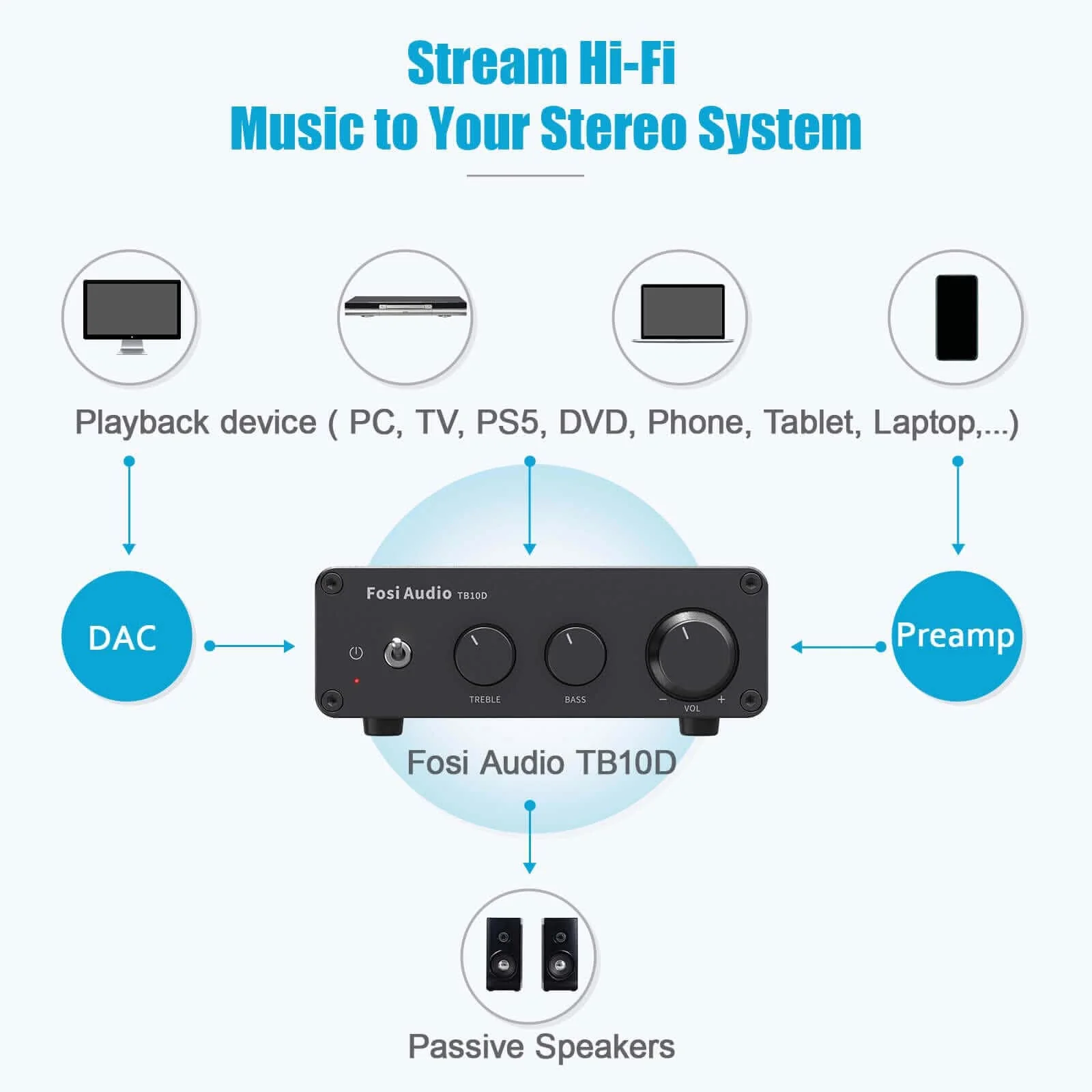

The high-efficient 2.0CH 300Wx2 desktop power amplifier can drive almost home large passive bookshelf speakers ensuring top-notch sound quality and is compatible with most sound equipment such as computers, DVDs, CD players, PC, laptops, TV, etc.
-

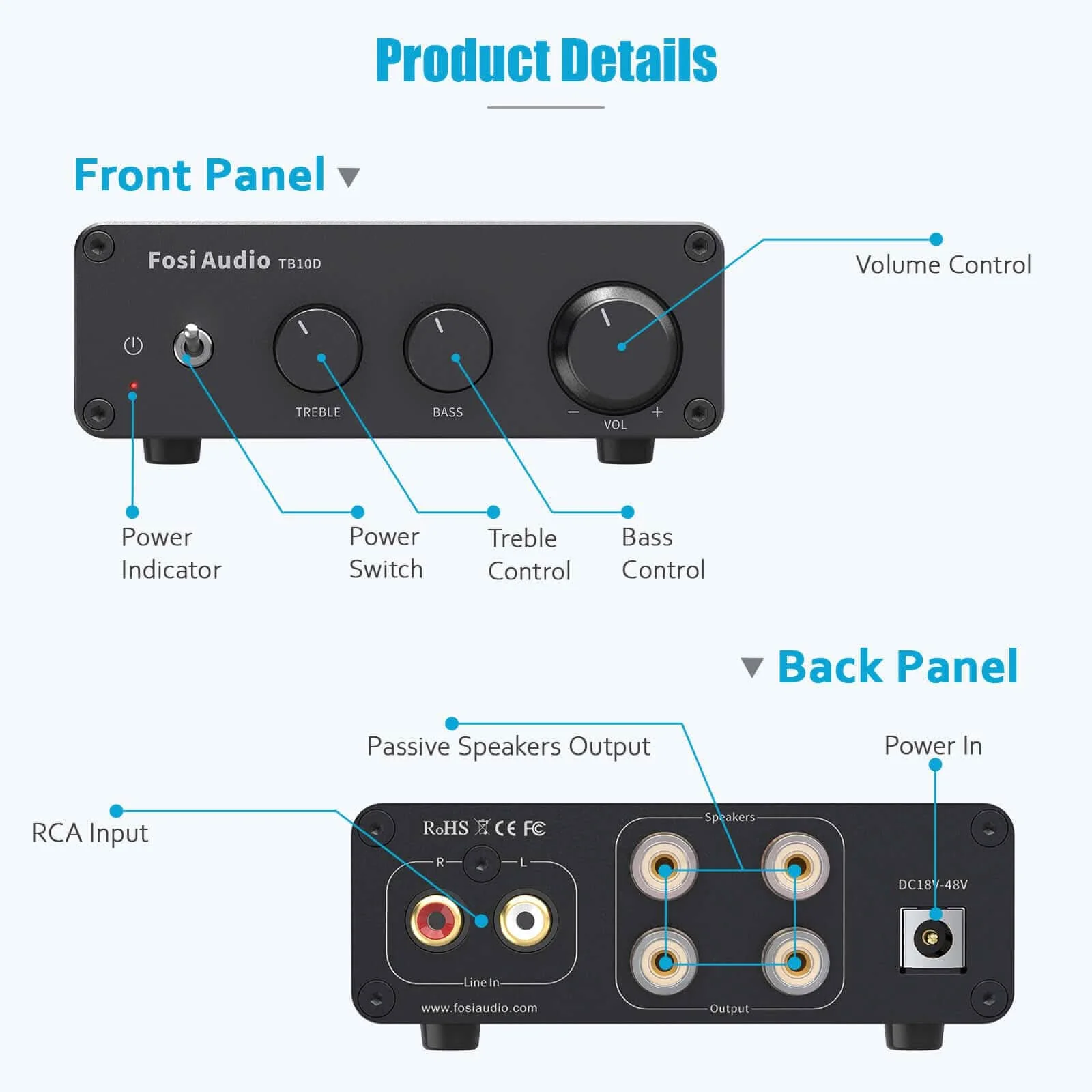

Mini classic simple design with bass, treble, and volume control. Replaceable Knobs: ORANGE KNOB, GREY KNOB. On the rear are banana plug connectors that can also accept a raw wire.
-
What you Get: TB10D amplifier x1, User Manual x1, 32V/5A Power Adapter x1(Note: You need a more powerful power supply to get the MAX 300W x2 power output, such as 48V/10A. The plug of the power adapter will match the country of your delivery address), AC Cord x1, 24-month worry-free warranty, and friendly customer service.
-
Tips: If you're in need of a Bluetooth amplifier, you can check out the BT20A PRO. It also has the same chip and power output, with the added feature of a PRE-OUT.
Specifications
| Specifications | Details |
|---|---|
| Model | TB10D |
| Output Power | 300Wx2 @4Ω |
| Terminating Impedance | 2-8Ω |
| Input Mode | RCA |
| Output Mode | Passive Speakers |
| Frequency Range | 20Hz - 40kHz (±2dB) |
| Input Sensitivity | ≤ 600mV |
| THD | ≤ 0.3% |
| SNR | ≥ 90dB |
| Chip Set | TPA3255 |
| DC Input Range | DC18V -48V |
| Device Weight | 1.05kg |
| Power Supply | 32V 5A |

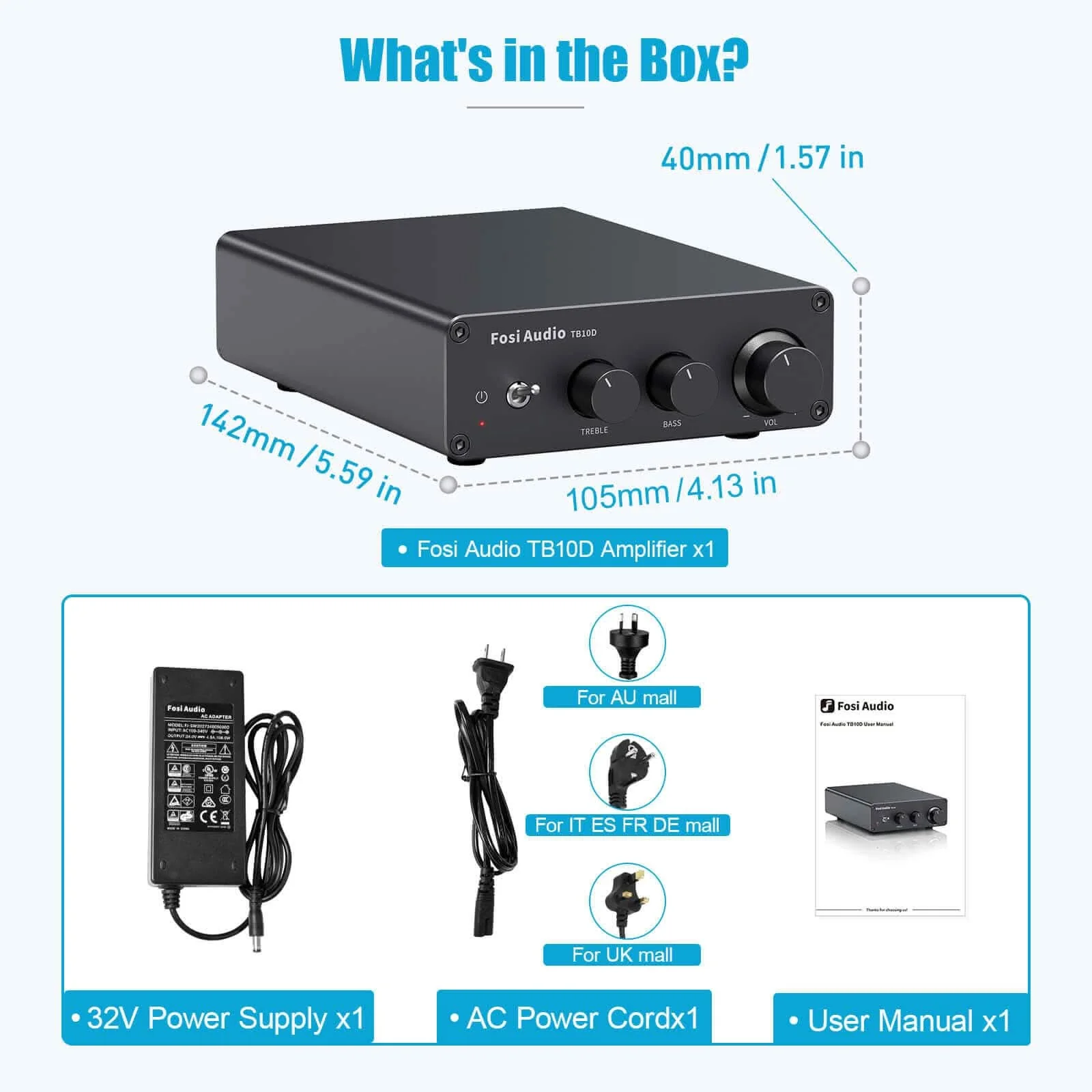

What‘s in the box？
| Item | Quantity |
|---|---|
| Fosi Audio TB10D | x 1 |
| AC Cord | x 1 |
| 32V 5A Power Adapter | x 1 |
| User’s Manual | x 1 |
