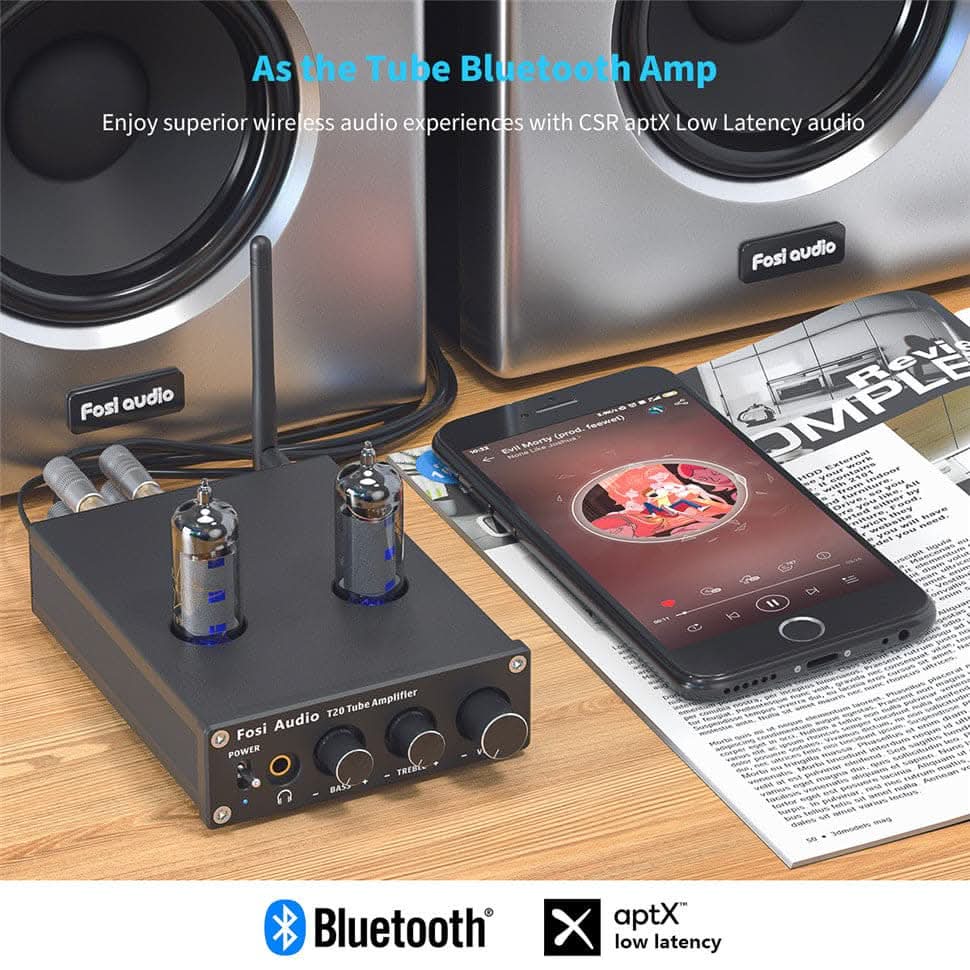

Fosi Audio T20 Bluetooth Tube Amplifier
-
QCC3031 wireless Bluetooth 5.0 core support aptX and aptX-HD, Streaming range up to 39ft(12m), With Bluetooth and AUX selector, no pop when Bluetooth connecting;
-
50W RMS X 2 power output(4 ohms, 20 Hz - 20 kHz, 0.04% THD), built-in speakers protection circuit, best for outdoor/ bookshelf/ computer/ desktop /ceiling /floor standing speakers, can use iPod, Phone, MP3 players, TV, Echo Dot, CD players, or Streaming Media players as input;
-

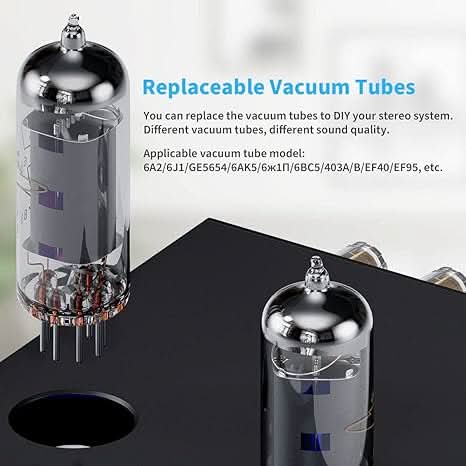

Adopt 2 x 5725 tubes to get clear audio sound, tubes can be replaced by JAN 5654W, 6K4, 6J1, GE5654, 6AK5, 6ж1П, 6BC5, 403A/B, EF40, EF95 and so on, with a headphone output for 16-64ohm headphones;
-
Small simple compact design but practical and powerful, Hi-Fi Bluetooth amplifier receiver exclusively designed for the customers who pursue HiFi sound;
-

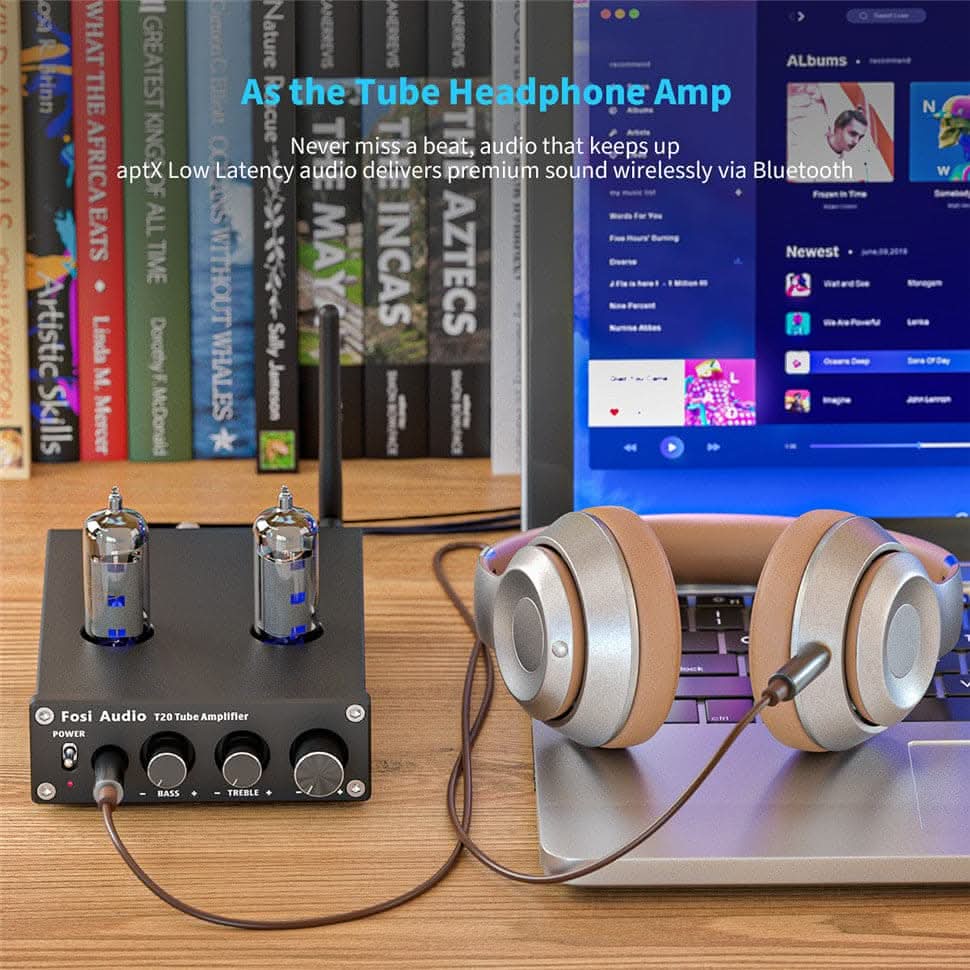

Power amp + Headphone amp, perfectly suited for your desktop or a smaller space in your home or office, digital amplifier is easy to connect to your audio system with no software to install or settings to change.
Specifications
| Specifications | Details |
|---|---|
| Model | T20 |
| Chip Set | TPA3116 |
| Output Power | 50W x 2 |
| Headphones Output | 16-64Ohm |
| Terminating Impedance | 2Ω-8Ω |

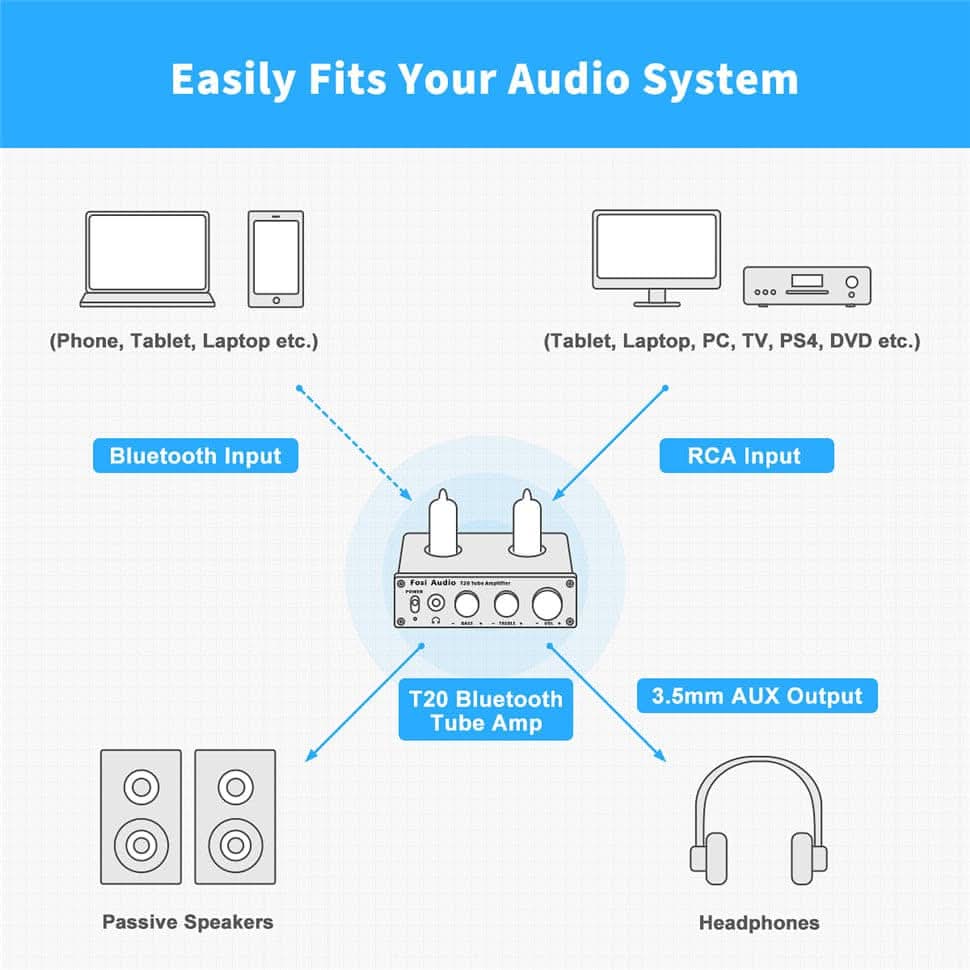

| Input Mode | Bluetooth + RCA |
| Output Mode | Passive Speakers + Headphone |
| Frequency Range | 20Hz - 20kHz (±1 dB) |
| THD | ≤ 0.04% |
| SNR | ≥ 99dB |
| Input Sensitivity | ≤ 280mV |
| Bluetooth Transmission Distance | Up to 39 Ft(12m) |
| Bluetooth Chip | QCC3031 |
| Bluetooth Version | Bluetooth 5.0 support aptX and aptX-HD |
| Device Dimension | 5.06 x 3.86 x 1.35 inches |
| DC Input Range | 12-24V |
| Power Supply | 24V 4.5A |
What‘s in the box？
| Item | Quantity |
|---|---|
| Fosi Audio T20 Amplifier | x 1 |
| Bluetooth Antenna | x 1 |
| 5725 Vaccum Tube | x 2 |
| 24V 4.5A Power Adapter | x 1 |
| User’s Manual | x 1 |
T20 User Manual
